In Nature, water assembles basic molecules into geometrically complex multi-functional structures with nano-to-macro property variation. Can water shape designed objects?
Water Based Digital Fabrication 00001 Listing
Wall of Aguahoja prints at MIT Media Lab

Percent of Earth's surface covered in water

71%

Position

In the natural world multi-functional forms are achieved through a hierarchy of structural features. A tree, for example, is composed of cells-forming leaves, limb-forming branches, and branch-forming crowns. In design, such complex levels of structural hierarchy and material composition are challenging to emulate. In human-made designs, structural hierarchy and material composition are traditionally achieved by combining discrete homogeneous parts into functional assemblies whereby volumes or surfaces are the determining factor in achieving functionality. Further, conventional computer-aided design tools typically contain geometric and topologic data of virtual constructs but lack robust means to integrate material composition properties within virtual models.

How can we transcend the culture of mono-material assemblies and enable a seamless workflow for the design and direct digital manufacturing of multi-property structures across scales? We answer that question through examining one of design’s most pressing issues: can we utilize water-, rather than petroleum-based materials for the generation of architectural scale structures made almost entirely from biocompatible matter? And, if we can, what would a world without waste look like?

Decay over disposal

Chitin’s Age (Millions of Years)

25 myr
Wbdf Butterfly Chitosan Composition

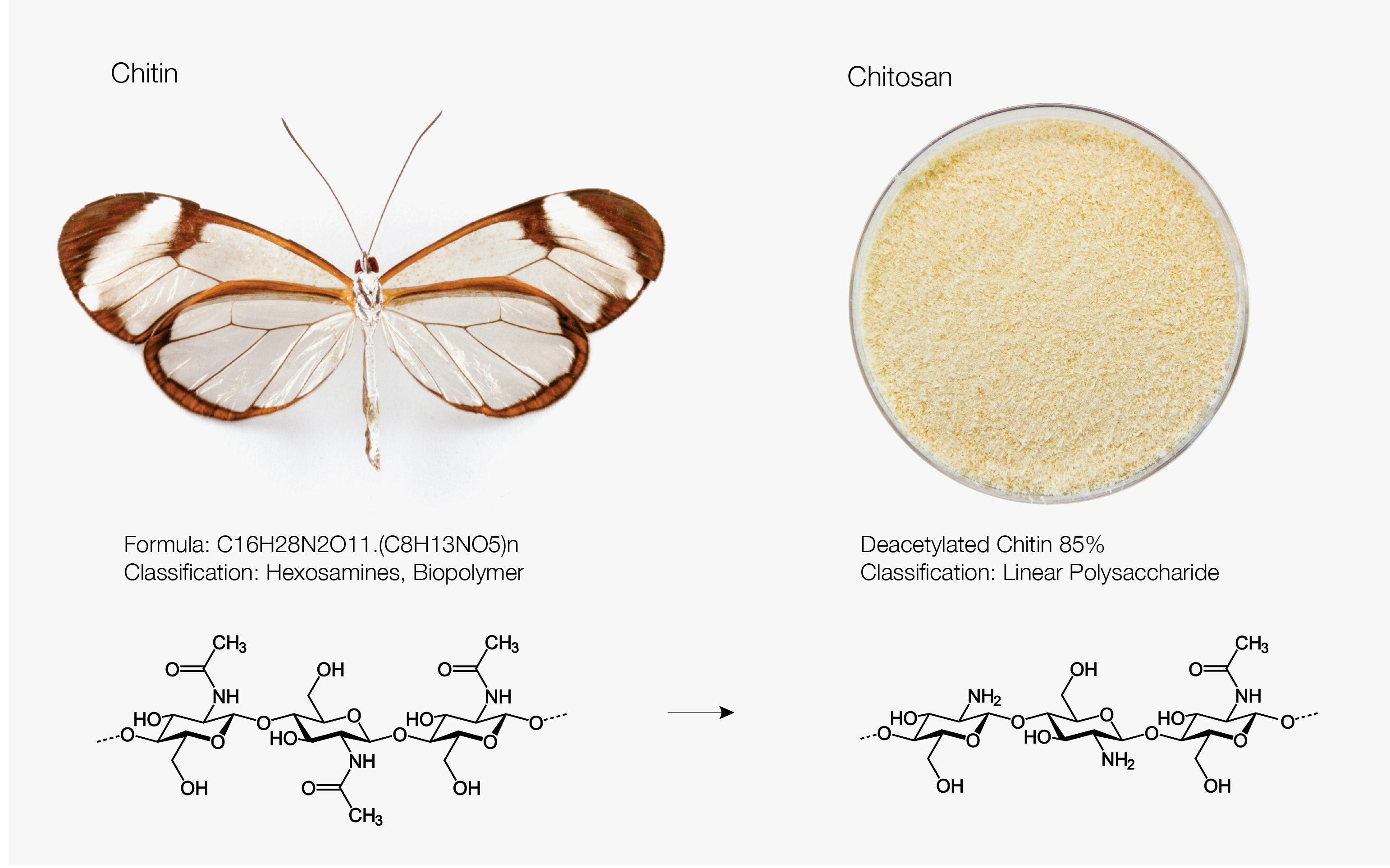

Shrimpshell derived chitosan through deacetylation
Wbdf Chitosan Gels Gs
Varying degrees of chitosan concentrations in gel state
Wbdf Printing Gantry
Aguahoja II printing on custom gantry and extruder
Wbdf Printing Multi Material Nozzle
3D printer with multi-material nozzle

Process

A robotically controlled arm and multi-chamber extrusion system are designed to mix, process and deposit biodegradable-composite objects combining natural hydrogels, such as chitosan and sodium alginate, with other organic aggregates. Architectural-scale composite structures digitally fabricated by this platform embody graded properties and feature sizes ranging from micro- to macro scale.

Completed structures may be chemically stabilized or dissolved in water, programmed for time-based recycling within minutes, hours, weeks, months or years. Applications include the fabrication of fully recyclable products or temporary architectural components such as tent structures with graded mechanical and optical properties. Proposed applications demonstrate environmental capabilities such as water-storing structures, hydration-induced shape formation, and product disintegration over time.

This platform leverages molecular self-assembly of renewable and biodegradable polymers to create multi-functional structures.
F3
X-ray diffraction patterns and plots showing orientation of chitosan crystallites
Aguahoja Nozzle Top View Printingprocess 04
Chitosan composite during the robotic fabrication process
Aguahoja Web 15
Robot arm at fabrication facility
Aguahoja Web 16
Chitin extrusion nozzle attached to robotic arm
Aguahoja Web 17
Nozzle printing chitin pattern

In Aguahoja I we focused on the development of a robotic platform for 3D printing biomaterials. We showed that shape and material composition can be directly informed by physical properties (e.g., stiffness and opacity), environmental conditions (e.g., load, temperature, and relative humidity), and fabrication constraints (e.g., degrees-of-freedom, arm speed, and nozzle pressure), etc. Each structure in the collection contains a unique combination of organic materials whose allocation, texture and distribution within the final object are computationally driven and additively manufactured in high resolution. This enables control over specific physical properties and environmental adaptation to changing weather conditions.

In contrast to most synthetic materials, structures included in this collection will react to their environment over their lifespan, adapting their geometry, mechanical behavior and color in response to fluctuations in heat, humidity, and sunlight. Such time-based ‘temporal’ behavior is utilized as a design feature able to sense, inform the user of, and adapt to changing environmental conditions. The robotic fabrication platform is engineered to convert converts cellulose, chitosan, pectin, and other abundant biopolymers, into high-performance sustainable ‘pastes’ that can be 3D printed into objects for applications spanning scales from millimeters to meters.

Wbdf Chitosan Sample 5 Close
Chitosan sample 05
Wbdf Chitosan Sample 1 Close
Chitosan sample 01
Wbdf Chitosan Sample 6 Close
Chitosan sample 06
Wbdf Chitosan Sample 10 Close
Chitosan sample 10
Wbdf Chitosan Sample 15 Close
Chitosan sample 15
Wbdf Chitosan Sample 11 Close
Chitosan sample 11
Wbdf Aguahoja Structural Skin Prototype
Aguahoja structural skin prototype
Wbdf Aguahoja Panel Assembly
Aguahoja panel assembly

Policy

Additive manufacturing of regenerated biomaterials is in its infancy despite the urgent need for alternatives to fuel-based products and in spite of the exceptional mechanical properties, availability, and biodegradability associated with water-based natural polymers. Water-based robotic fabrication is an enabling technology for additive manufacturing of biodegradable hydrogel composites.

Digital manufacturing platforms are often critiqued for consuming high levels of energy, producing single-use parts, being wasteful and generating toxic by-products in the process. Water-based production processes, in contrast, consume relatively low amounts of energy, generate multi-functional structures, produce little to no waste, and utilize local non-toxic materials.

The water-based robotic fabrication technology considers water a building block for the construction of architectural scale structures and parts, modeled after Nature’s methods. The platform enables 3D printing of water-based composites and regenerated biomaterials such as chitosan, cellulose or sodium alginate for the construction of highly sustainable products and building components. It demonstrates that water-based fabrication of biological materials can be used to tune mechanical, chemical and optical properties of aqueous material composites.

Aguahoja Chitosan Sample Closeup 13
Closeup of chitosan sample 13

Publications

Credits

Collaborators & Contributors: Shaymus Hudson, Tzu-Chieh Tang, Prof. Tim Lu and the Lu Lab, Research Laboratory of Electronics at MIT, Nitzan Zilberman, MIT Media Lab

Research Collaborators: Joseph Faraguna, Matthew Bradford, Loewen Cavill, Emily Ryeom, Aury Hay, Yi Gong, Brian Huang, Tzu-Chieh Tang, Shaymus Hudson, Prof. Pam Silver, Prof. Tim Lu

Substructure Production: Stratasys Ltd, Stratasys Direct Manufacturing

Music Composition: Jeremy Flower

Video Production: The Mediated Matter Group, Paula Aguilera, Jonathan Williams

Acknowledgements: MIT Media Lab, NOE. LLC, Stratasys Ltd, MIT Research Laboratory of Electronics, Wyss Institute at Harvard, Department of Systems Biology at Harvard, GETTYLAB, Robert Wood Johnson Foundation, Autodesk BUILD Space, TBA-21 Academy, Thyssen-Bornemisza Art Contemporary, Stratasys Direct Manufacturing, National Academy of Sciences, San Francisco Museum of Modern Art, Esquel Group.

Aguahoja I was acquired for the permanent collection at the San Francisco Museum of Modern Art (since 2018)

All images and videos courtesy Neri Oxman and The Mediated Matter Group
